ECON-ETFR Series Table top is best suited for genereal weighing with easy to view 20mm Super Bright Green LED under any lighting condition.Suited for use in any part of india even in area's of extreme low voltage. Double display for user and customer viewing eliminates the doubt of accurate weighing. ECON-ETFR Series offers uncomplicated performance for all your weighing applicatons.

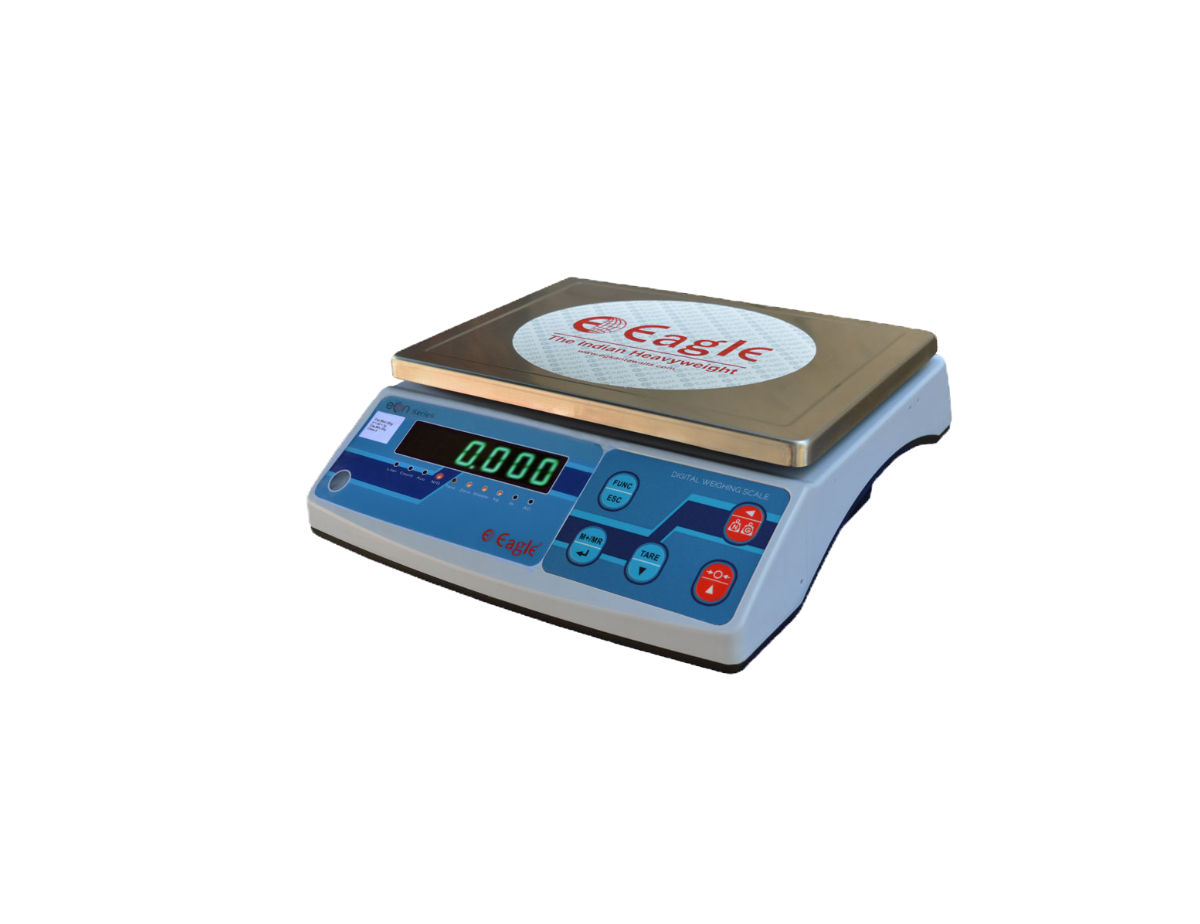

Table Top Weighing Scale | ECON series ETFR

SKU: KK-SCL-TABLETOP-EG-ECON ETFR

Price available on request. Click on 'Get a Quote' !

Tare Function

Counting Function

Accumulation Function

Liter Conversion Function

Auto Tare Function

Peak Hold Fuction

Inbuilt Battery Charger*

Low Battery Indication

Battery % Function

Weight Stable Indication

5 Keys Colour Coded Key Board

Battery Back-up: 6V / 4.5 AH - 10 Hours+ When Battery is Fully Charged

Anti-Slip Adjustable Levelling Feet

Zero Tracking

Over Load Protection & Indication

Auto Sleep / Power Down Function - 0 to 99 Mins

Miltiple Weighing Range - Dual as well as Triple range.

Simple user-friendly operation

Physical Dimension	340 x 320 x 110 mm (±5 mm)
Net Weight	3.1 kg. Approx.
Weight Sensor	Aluminum Load Cell - IP65
Processor	32 Bit Arm Processor
Key Board	5 Keys
Display Type	7 Segment LED Green Display
No. of Display Window	Dual Display
Display Size	20 mm - Front Display & 14 mm Back Display
Platter Size	315 x 220 mm
Repeatability	± 1d
Linearity	± 1d At Half Load & ± 2d At Full Load
Creep	± 2d (for 3 Minutes with Full capacity)
Calibration Method	External Calibration Software Based
Power Connector	2 Pin Mains Cord (5A)
Power Supply	150 V to 230 V (AC)
Frequency	50 - 60 Hz
Power Consumption	< 5 Watts
Operating Temperature	0°C to 45°C
Operating Humidity	95% RH Max (Non - Condensing)
Battery Capacity	6V / 4.5 AH
Over-load	100 % Of Scale Capacity +9e
Safe-load	150 % Of Scale Capacity
Stabalisation Time	< 4s
Internal Resolution	24 Bit ADC (10,48,576 Counts)
Model Approval No.	IND/09/16/490 IND/09/17/71

all types of weights and measures and such weighing and measuring instruments which are not required to be installed or calibrated at the place of use shall be verified in the State of manufacture or import;

all types of weights and measures meant for domestie use shall be verified in the State of manufacture or import;

all non-automatic weighing instruments, upto maximum capacity of 50 kg shall be verified in the State of manufacture or import, if it is not dismantled or do not require calibration before putting into use;

all other weights and measures and such weighing and measuring instruments which are required to be installed or calibrated at the place of use shall be verified and stamped at the place of installation.

Model	Capacity	Accuracy
ECON-ETFR	5/7.5 kg	0.5/1 g
ECON-ETFR	10/15 kg	1/2 g
ECON-ETFR	15 kg	2 g
ECON-ETFR	10/20/32 kg	1/2/5 g
ECON-ETFR	20/32 kg	2/5 g
ECON-ETFR	32 kg	5 g
