Load Cell Calibration: Step-by-Step Guide

In any weighing or force-measurement system, accuracy isn’t a “nice to have”—it’s the whole point. Whether you’re running a weighbridge, batching plant, tank weighing system, or industrial test rig, the reliability of your data depends heavily on one thing: proper load cell calibration.

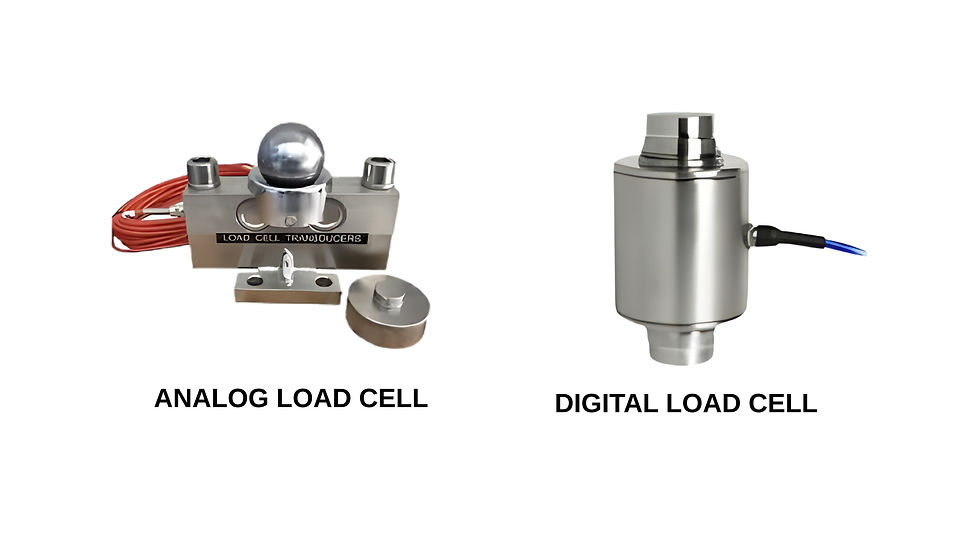

Load Cell Calibration

Over time, load cells naturally drift due to mechanical stress, temperature changes, electrical aging, or environmental exposure. Calibration is how we bring them back in line with reality. This guide walks you through what load cell calibration is, why it matters, and how to do it step by step—in plain language, without overcomplicating things.


What Is Load Cell Calibration?


Load cell calibration is the process of verifying and adjusting the output of a load cell so that it accurately reflects the applied load or force. In simple terms, you’re teaching the system what “zero” looks like and how much signal corresponds to known weights.

Calibration ensures that:

  • Measurements are accurate and repeatable

  • Errors are detected before they cause losses

  • The system complies with quality and legal standards

Skipping calibration is like driving with a speedometer you hope is correct.


Why Load Cell Calibration Is Critical?


Even the best load cells don’t stay perfect forever. Factors like vibration, overloads, corrosion, cable damage, and temperature cycling slowly introduce errors. Without calibration, these small errors compound into big problems.


Proper calibration helps you:

  • Avoid product giveaway or under-billing

  • Maintain process consistency

  • Ensure safety in load-critical applications

  • Meet ISO, legal-metrology, or audit requirements

In regulated industries, calibration isn’t optional—it’s mandatory.


When Should You Calibrate a Load Cell?


There’s no single rule, but calibration is recommended:

  • During initial installation

  • After relocation or mechanical modification

  • Following overload or shock

  • At regular intervals (6 or 12 months is common)

  • When readings appear unstable or inconsistent

If the system “doesn’t feel right,” that’s usually a calibration red flag.


Step-by-Step Load Cell Calibration Process


Step 1: Prepare the System


Before calibration, make sure the mechanical setup is correct:

  • Load cell is properly mounted and aligned

  • No binding, friction, or side loading

  • All bolts tightened to specified torque

  • Cables intact and properly grounded

Calibration cannot fix mechanical problems—so fix those first.


Step 2: Warm-Up and Stabilization


Power up the system and allow it to stabilize. Electronics and strain gauges need time to reach thermal equilibrium.

  • Typical warm-up time: 15–30 minutes

  • Ensure stable ambient temperature

  • Avoid drafts, vibration, or sudden temperature changes

Rushing this step leads to drifting zero values later.


Step 3: Zero Calibration (No Load)


With no load applied, set the zero reference:

  • Ensure the scale or structure is completely unloaded

  • Remove debris, residue, or trapped material

  • Zero the indicator or controller

This step defines what the system recognizes as “nothing.”


Step 4: Apply Known Calibration Weights


Now comes the heart of calibration—applying traceable, known weights.

  • Use certified calibration weights whenever possible

  • Apply weights gradually and evenly

  • Avoid shock loading

  • Record the system’s output at each load point

For best accuracy, use multiple load points (e.g., 0%, 25%, 50%, 75%, 100% of capacity).


Step 5: Span Adjustment


Compare the displayed values with the actual applied weights:

  • Adjust the span so the output matches the known load

  • Repeat until readings are within acceptable tolerance

This step aligns the electrical output with real-world force.


Step 6: Linearity Check


After span calibration:

  • Increase and decrease the load step-by-step

  • Check readings during both loading and unloading

  • Look for hysteresis or non-linearity

Good load cells should show consistent results in both directions.


Step 7: Corner or Load Distribution Calibration (If Applicable)


For platforms or weighbridges:

  • Apply weight to different positions (corners)

  • Ensure consistent readings across the platform

Uneven load response usually points to mechanical or mounting issues.


Step 8: Final Verification and Documentation


Once calibration is complete:

  • Perform a final full-scale check

  • Lock calibration settings if required

  • Document calibration data, date, and technician details

Proper records are just as important as the calibration itself.


Common Calibration Mistakes to Avoid


Even experienced technicians can slip up. Watch out for:

  • Using unverified or makeshift weights

  • Calibrating in unstable environmental conditions

  • Ignoring mechanical binding or misalignment

  • Skipping documentation

  • Overlooking cable and grounding issues

Calibration done wrong is sometimes worse than no calibration at all.


Final Thoughts


Load cell calibration isn’t just a technical task—it’s a discipline. When done correctly, it protects accuracy, profitability, and trust in your measurements. When neglected, it quietly erodes system performance until something goes wrong.


Whether you’re an operator, maintenance engineer, or quality professional, understanding and respecting the calibration process makes you better at your job—and your system far more reliable.


Accuracy doesn’t happen by accident. It happens by calibration.
